Overview

Quick Details

Applicable Industries: :

Manufacturing Plant, Machinery Repair Shops, farms, Retail

Place of Origin:Zhejiang, China Brand Name: :

OEM

We are looking forward to developing successful business relationships with new clients around the world in the future. Gearing Arrangement: :

Planetary

Output Torque: :

--6020N.m

Input Speed: :

--1

Output Speed: :

5.5RMP

Supply Ability

Supply Ability: : 1000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: wooden Port: shanghai

Online Customization

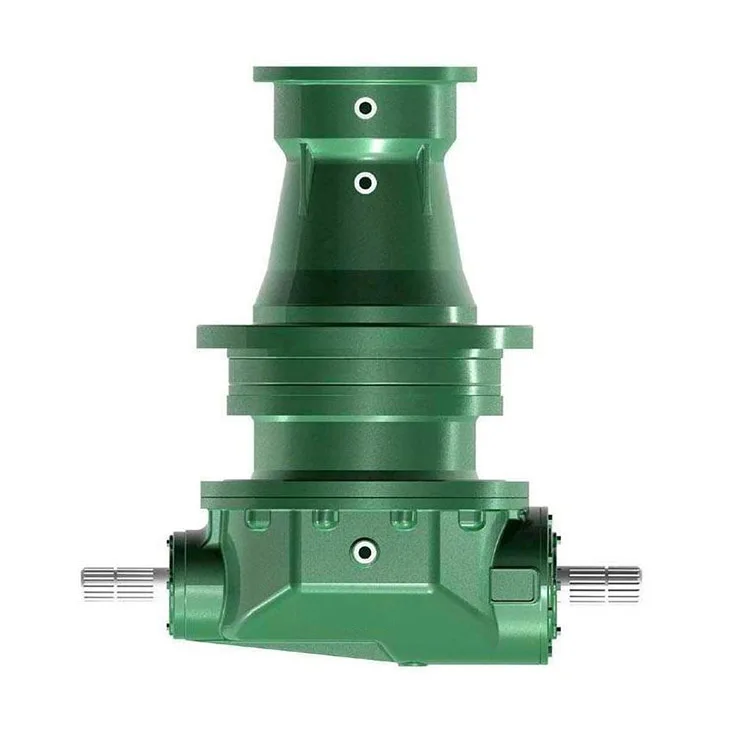

Planetary Gearboxes









Product Description







Planetary Gearboxes is a widely used new type of speed reducer. And the vertical type of planetary gearboxes features the light weight, compact design, low vibration and low noise and so on, thus making the gearboxes widely used in chemicals, electrical mechanism, construction, weight-lifting and transport and so on.

Technical Parameters of Vertical Type Planetary Gearbox:

Size	Flange							Output Shaft			Key				IEC  MOTOR FRAME
	B	C	D	E	G	I	Z	LR	LS	S	J	T	W	Y
200	110	130	160	4	12	44	4-10	30	35	24	M8	7	8	27	63A-71B
280	130	165	200	4	16	60	4-12	40	50	32	M10	8	10	35	71B-90L
300	180	215	250	4	20	68	4-16	50	58	38	M12	8	10	41	71B-112M
300H	230	265	300	4	20	68	4-16	50	58	38	M12	8	10	41	132L
301	180	215	250	4	20	94	4-16	70	82	50	M16	9	14	53.5	90L-160M
301H	230	265	300	4	20	94	4-16	70	82	50	M16	9	14/td>	53.5	132L-160M
303	250	300	350	4	20	104	4-19	80	95	55	M16	10	16	59	90L-160L
305	250	300	350	4	20	114	4-19	90	105	60	M20	11	18	64	90L-180L
307	350	400	450	5	27	140	4-22	110	130	80	PCD-55 3-M12	14	22	85	100LA-200L
309	350	400	450	5	27	180	4-22	150	170	90	PCD-55 3-M12	14	25	95	100LA-225S
313	450	500	550	5	32	215	4-28	180	200	120	PCD-70 3-M16	18	32	127	200LA-280S



LENGTH TABLE *in millimeter



Stage 1
Size HP		200	280	300	300(H)	301	301(H)	303	305	3The high precise CNC equipment, such as Slow-feeding wire-cut machine, jig grinding machine and electric discharge machine, ensures the top quality precision of mould processing, with the high efficient and environmental protection acid rolling line being the largest raw material converting equipment in the field in china; The wildly use of automatic milling machine, high-speed automatic feeding punch, high speed automatic rolling and assembling machine guarantees the high quality and efficiency of components and chain making. 07	309	313
1/4, 1/2	L	176	236	*	*	*	*	*	*	*	*	*
1, 2		*	236	277	277	316	316	*	*	*	*	*
3, 5		*	246	280	280	318	318	*	*	*	*	*
7.5, 10		*	*	295	295	333	333	428	438	*	*	*
15, 20		*	*	331	331	370	370	465	475	*	*	*
25, 30		*	*	*	*	*	*	465	475	*	*	*



Although we take pride in being "Collar Specialists", our expertise in sourcing quality products has made Lucas Industrial a valued supplier of other power transmission products as well. First among these are linear bearings with interchanges available for virtually all styles and sizes. Other power transmission products available through Lucas Industrial include leaf chain, roller chain, lumber conveying chain, rigid couplings, ball bearings, and sprockets.

Stage 2
Size HP		200	280	300	300(H)	301	301(H)	303	305	307	309	313
1/4, 1/2	L	206	270	308	308	*	*	*	*	*	*	*
1, 2		*	270	308	308	358	358	438	448	*	*	*
3, 5		*	280	318	318	360	360	440	450	*	*	*
7.5, 10		*	*	*	*	375	375	455	465	655	695	*
15, 20		*	*	*	*	425	425	490	500	691	731	982
25, 30		*	*	*	*	*	*	*	*	691	731	982



Stage 3
Size HP		200	280	300	300(H)	301	301(H)	303	305	307	309	313
1/4, 1/2	L	236	304	342	342	388	388	*	*	*	*	*
1, 2		*	304	342	342	388	388	480	490	664	704	*
3, 5		*	314	352	352	398	398	482	492	666	706	*
7.5, 10		*	*	*	*	*	*	492	508	681	721	1046
15, 20		*	*	*	*	*	*	*	555	717	757	1082
25, 30		*	*	*	*	*	*	*	*	*	*	1082



Stage 4
Size HP		200	280	300	300(H)	301	301(H)	303	305	307	309	313
1/4, 1/2	L	266	338	376	376	422	422	510	520	*	*	*
1, 2		*	338	376	376	422	422	510	520	706	746	1056
3, 5		*	348	386	386	432	432	520	530	708	748	1058
7.5, 10		*	*	*	*	*	*	*	*	723	763	1073
15, 20		*	*	*	*	*	*	*	*	771	811	1110
25, 30		*	*	*	*	*	*	*	*	*	*	*





The company's products are used in mining equipment for travel drive.





The company's products are used in construction machinery for travel drive and slewing drive.



The company's products are used in heavy industry machinery for wheel drive and winch drive.



The company's products are used in crane for winch drive, travel drive, slewing drive.



The use of planetary gear drives in the field of power. Transmission is the modern answer to the demand for Compactness constructive simplicity and product reliability.

The EP3 series planetary gearbox drives by Ever-Power Transmission Co., Ltd enjoy following features:



Output torque Range: 1000 ... 450000 N.m

Transmissible Mechanical Power: up to 450 kW

Gear Ratios: i=3,3 ... 9000



Gear Unit Versions: In line



Right angle (with a spiral bevel gear set)



Output Configuration:



Foot and flange mounted



Output shaft: solid with key, spline, spline hollow,



hollow with shrink disc



Input Configurations



Flanged axial piston hydraulic motors



Hydraulic orbit motors



IEC and Nema motor adaptors



Solid input shaft



Hydraulic Brake: Hydraulically released parking brake on request



Electric Brake: DC and AC type





The EP7 series slew drives by Ever-Power Industry Co., Ltd enjoy following features:



Output torque Range:1000 ... 80000 N.m       Gear Ratios: i=3,3 ... 3000



Support: slew support (with Flange mounted)       Electric Brake:DC and AC type



Output shaft: splined or with integral pinion. Output shafts supported by heavy duty capacity bearings



Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors



Hydraulic motor options:Pressure relief valve, Over center valve, parking brake on request







The EP400 series track drives by ZheJiang Ever-Power Industry Co., Ltd. enjoy following features:

1. Output torque Range: 1000 ... 220000 N.m
2. Gear Ratios: i=5.3 ... 365
3. Support: rotating housing flange to fit tracks
4. Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors
5.   Hydraulic motor options: Pressure relief valve, Overcenter valve on request
6. Brake: hydraulic released parking brake on request



The 600 series wheel drives by ZheJiang Ever-Power Industry Co., Ltd. enjoy following features:

1. Output torque Range: 1750 ... 60000 N.m
2. Gear Ratios: i=5.8 ... 160
3. Support: rotating housing flange to fit wheels and drums
4. Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors
5. Hydraulic motor options: Pressure relief valve, Overcenter valve on request
6. Brake: hydraulic released parking brake on request



Classify by application

EP300L / EP300R Planetary Gearbox

Planetary Track Drive

Planetary Winch Drive

Planetary Wheel Drive

Planetary Slew Drive

Planetary Yaw and Pitch Drive

Planetary Mixer Drive

Planetary Speed Reducers

Planetary Geared Motors

Planetary Creep Drives

Planetary Sprocket Drives

Bevel Planetary Speed Reducers

Planetary Parallel Axis and Uni-Axis Twin Output Shaft Speed Reducers

Planetary Belt Conveyor Drives

Gearbox for concrete truck mixer

SLP Series







Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, sprockets ,rollar chains, bevel gear, pulleys and racks in china.







we have exported many products to our customers all over the world, we have long-time experience and strong technology support.

some of customer :
Italy:  COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini

Germany: SILOKING ,GKN ,KTS

France: Itfran, Sedies

Brazil:  AEMCO ,STU

USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS

Canada: JAY-LOR , CANIMEX ,RingBall

......



-Ø Our Company with over twelve year’s history and 1000 workers and 20 sales.

-Ø With over 40 Million USD sales in 2014

-ØWith advance machinery equipments

-ØWith large work capacity and high quality control, ISO certified.





you also can check our website to know for more details, if you need our products catalogue, please contact with us.
